Products > Room Thermostat

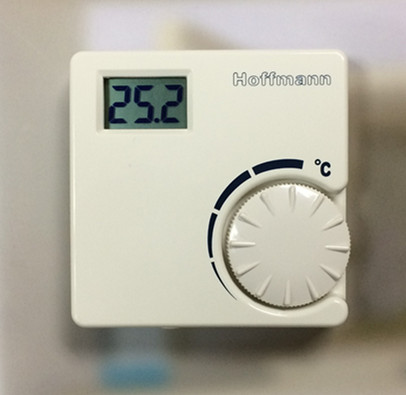

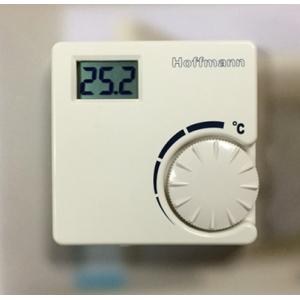

HRT-176WT WIred Thermostat
Features

 FunctionOT thermostat,

LCD display show current temperature,

Existing temperature setting if no operation within 5 seconds,

Temperature calibration.

featureConnected boiler with two wire, battery not required, control boiler water temperature

Dimensions86*86*20MM

Tolerances0.1

Temperature measurement precision 0.1℃temperature range5-35℃

Size:86*86*20mm

Specification



3VDC

Voltage

2 Pole

2 wire connection



Max output



Reserve power

 2 years

Guarantee period

Plus 5⁰C  to  Plus 30⁰C

temperature range

0.1

Tolerances

IP 21

Protection degree

H86 , W 86 , D 20 mm

Dimension

25 x 16 mm

LCD size

Target temperature, Hysteresis ON/OFF

Setting

YES

Temperature calibration

Room temperature

Displayed when set ON

no

programming

no

backlight

ON /  OFF

lock

⁰C

Temperature select

Hysteresis ON/OFF point, sensor set.

Default set

Temperature, Heater "ON" OFF" ,  Program event, Time , Day , Date and Sensor condition

LCD shows
