Products > Wireless room thermostat

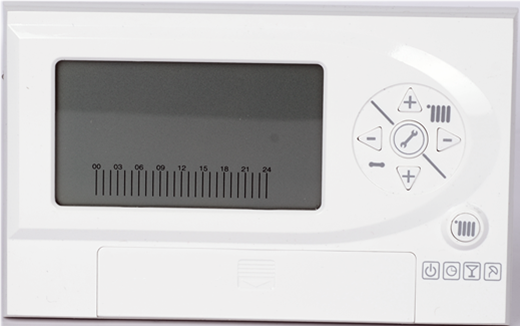

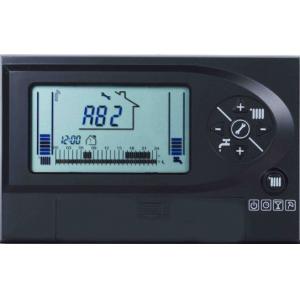

HRT-126RT
Features
Specification

126RT includes all the features of 126WT with the additional benefit of wireless connectivity, which saves some annoying installing troubles.



Features

Open Therm protocol supported

Large LCD display, easy to read

7 days programmable, 48 set points per day

Frost protection temperature function

Auto/Party/Off/Holiday work mode optional

Hysteresis value adjustable



Transmitter technical data

Power supply                2x1.5V AAA -Alkaline batteries, with low battery indication

Relay output                 Max 2A @ 30V DC/0.25A @230V AC

Temperature setting range              5-35

Temperature sensor                Built-in

Size:                       138x86x23mm

Color: White/Black



Receiver technical data

Model HRT-101C

Power supply                     230V AC+ 10%, 50Hz

Power consumption           1.2W

Radio frequency                868MHz or 433MHz (up to 100m in open air)

Relay output                      Max 2A @ 30V DC/0.25A @230V AC

Size                                    86x86x35mm

Wiring                                Connecting to gas boiler with 6 wires cable
